1.Core Functions

This industrial media converter bridges serial electrical signals and optical fiber transmission, solving long-distance serial communication and heavy electromagnetic interference problems.More products: www.plcva.com

1. Serial ↔ optical signal conversion Converts between RS-232 / RS-422 / RS-485 electrical signal and single-mode fiber optical signal. It can only be configured for one serial standard at a time via DIP switches, cannot run multiple serial standards simultaneously.
2. Automatic baud rate detection Auto-sense serial baud rate from 50 bps up to 921.6 kbps. No manual baud rate matching required; data transmission continues without loss when baud rate changes.
3. Long-distance transmission extension Single-mode fiber supports max transmission distance of 40 km, far exceeding the 1.2km limit of ordinary RS485 copper cable.
4. Dual topology support: Point-to-point & Fiber Ring

• Point-to-point: Basic one-to-one serial transmission.
• Fiber ring mode: Multiple TCF-142 units form a serial fiber ring. If one fiber segment breaks, communication can automatically bypass the fault link to maintain serial data transmission.

5. Industrial surge & ESD protection Built-in 15kV ESD protection for serial port; robust EMC immunity against electrical surge, electromagnetic noise, which isolates ground loop interference effectively.
6. Status indication & DIP switch configuration LED indicators for power, fiber Tx/Rx status. On-board DIP switches select serial mode (RS232/422/485), 2-wire /4-wire RS485, enable/disable fiber ring function.
7. Wide-temperature hardware (T version) The suffix -T means wide temperature operating range: -40 ℃ ~ +75 ℃, suitable for extreme cold or high-heat field sites.
8. Rugged mechanical design Metal housing, IP30 protection grade; support wall mounting. Powered by 12~48 VDC.

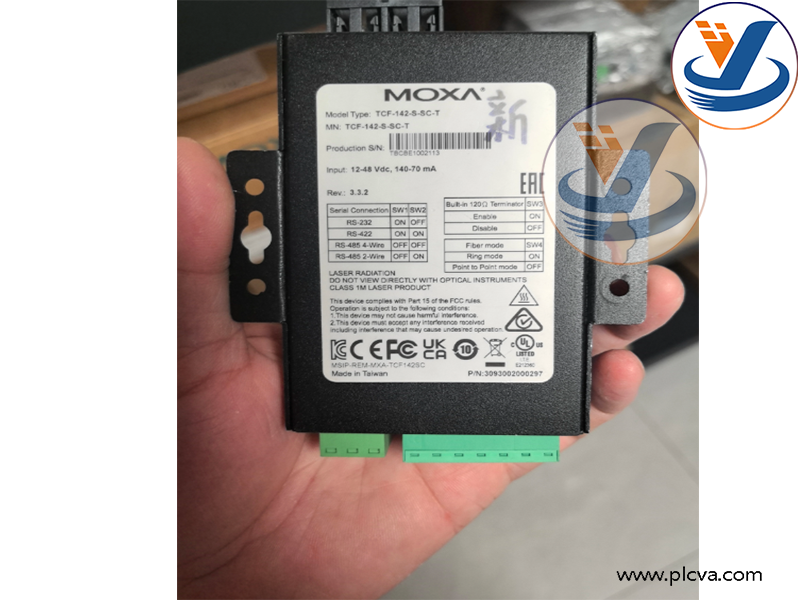

MOXA TCF-142-S-SC-T Serial-to-Fiber Media Converter

2. Applications & Purpose

Core Purpose

It extends industrial serial communication over long distances via optical fiber, eliminates ground loop and electromagnetic interference. It connects serial field instruments, sensors and controllers in noisy industrial environments, to realize reliable remote serial data transmission.plcva.com

Typical Application Fields

• Power industry: Substation RTU, power meter, protection device serial communication
• Oil & gas: Remote field transmitters, pipeline monitoring instruments
• Water treatment: Flow meter, level sensor, PLC serial communication
• Railway & tunnel monitoring systems
• Factory automation: Field serial instruments, weighing systems, barcode readers

Working Flow

Field serial device (RS485/232 instrument) → electrical serial signal → TCF-142-S-SC-T converts electrical signal to optical signal → single-mode fiber cable → remote TCF-142 converter converts optical signal back to serial electrical signal → PLC / host computer receives serial data.

MOXA TCF-142-S-SC-T Serial-to-Fiber Media Converter

3. Key Specifications

• Serial interface: RS-232, RS-422, 2-wire /4-wire RS-485 (selected by DIP switch)
• Fiber type: Single-mode, SC connector, max 40km transmission
• Baud rate: 50 bps ~ 921.6 kbps, auto baudrate detection
• Operating temperature: -40 ℃ ~ +75 ℃ (T wide temp version)
• Power input: 12 ~ 48 VDC
• Enclosure: Metal case, IP30
• Protection: 15kV ESD for serial port
• Topology: Point-to-point, fiber ring
• MTBF: 780,480 hours

Important distinction: TCF-142-S-SC: Standard temperature version (0~60°C); TCF-142-S-SC-T: Wide-temperature version (-40~+75°C) for harsh field environments. This device is serial-to-fiber converter, NOT Ethernet fiber switch; it only transmits serial data, not Ethernet packets.plcva.com
