Emerson

1.Main Functions

• AC frequency and voltage conversion: Converts fixed-frequency 3-phase 380V mains AC power into adjustable-frequency and adjustable-voltage AC output to control AC induction motor speed.
• Stepless speed regulation: Realizes continuous motor speed adjustment to match process flow requirements, replacing traditional mechanical speed regulation.
• Motor soft start: Starts the motor with low starting current, reduces mechanical impact and inrush current to protect motor and power grid.
• Torque control & constant torque output: Provides stable constant torque output suitable for heavy-duty constant torque loads.
• Multiple protection functions: Overcurrent protection, overvoltage protection, undervoltage protection, overload protection, overheat protection, phase loss protection and short-circuit protection.
• Built-in PID closed-loop control: Supports closed-loop regulation for pressure, flow or temperature control by connecting external sensors.
• Communication interface: Supports RS485 serial communication, compatible with Modbus protocol for connection with PLC, DCS and HMI systems.
• Multi-speed operation: Presets multiple fixed speeds for simple logic switching according to production requirements.
• Energy saving: Reduces power consumption for fan and pump loads by lowering motor operating speed.

Core summary: This variable frequency drive converts fixed 380V three-phase AC power into variable-frequency power to drive asynchronous motors. It achieves stepless speed regulation, soft start and energy saving, and supports closed-loop control and communication with automation systems.plcva.com.

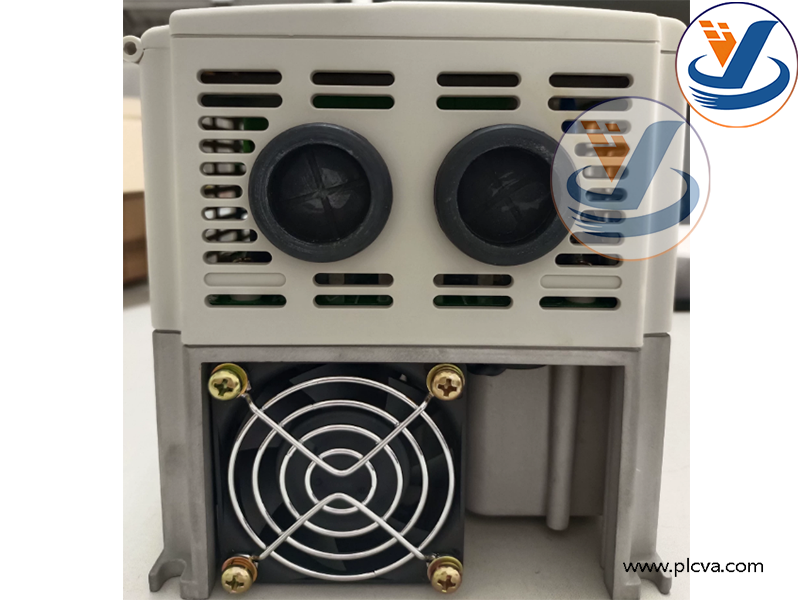

EMERSON TD1000A-4T0022G Inverter

2. Applications

1. Water treatment industry Water supply pumps, sewage pumps, circulating water pumps, dosing pump speed control.
2. HVAC & building services Air handling fans, cooling tower fans, water pumps for central air-conditioning systems.
3. General machinery manufacturing Conveyors, mixers, extruders, small lifting equipment and textile machinery.
4. Food & packaging machinery Packaging lines, material conveyor belts and processing equipment.
5. Mining & metallurgy auxiliary equipment Small fans and water pumps for workshop auxiliary systems.
6. Spare part replacement & equipment retrofit Used as replacement spare or upgrade component for existing TD1000 series drive systems.www.plcva.com

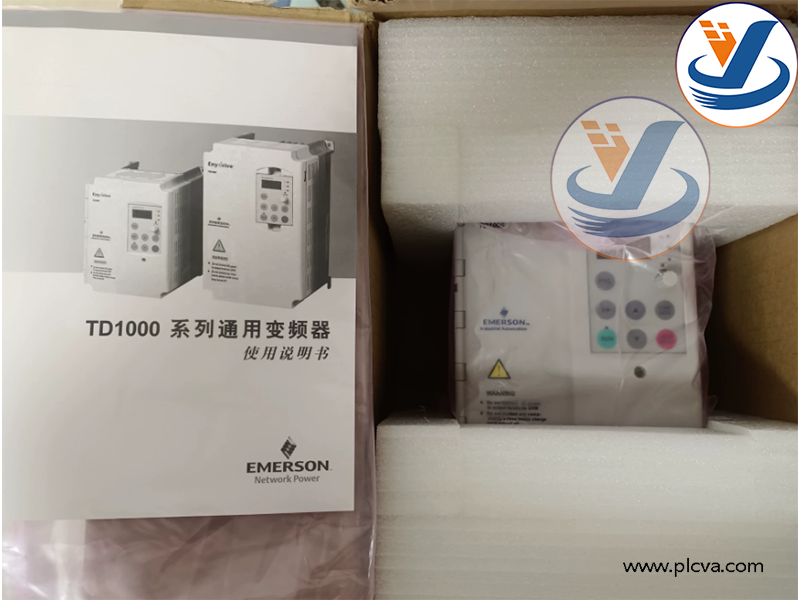

EMERSON TD1000A-4T0022G Inverter

3. Product Features Summary

• Rated power: 2.2kW, 3-phase 380V input, general constant torque VFD.
• Compact structure, easy panel mounting and simple parameter setup.
• Soft-start function reduces impact on power grid and mechanical equipment.
• Complete multi-layer electrical protection for motor and drive safety.
• Built-in PID function for automatic closed-loop process control.
• RS485 Modbus communication available for upper automation system linkage.
• Suitable for continuous long-time operation in general industrial environments.
• Widely used as spare replacement for original TD1000A series installed equipment.

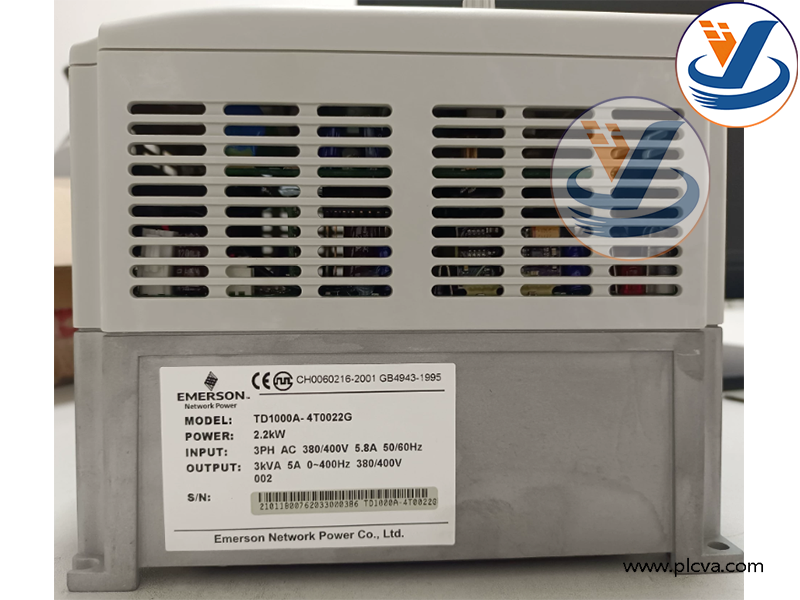

EMERSON TD1000A-4T0022G Inverter

EMERSON TD1000A-4T0022G Inverter
