1.Functions

FW351(B) Analog Input Card

1. 8-channel point-to-point isolated analog signal acquisition. Supports standard II/III type current & voltage signals (4–20mA, 0–20mA, 1–5V, 0–5V).www.plcva.com
2. Supports field transmitter loop power supply, each channel with independent short-circuit protection.
3. Wire-break detection function for 4–20mA signal, sends alarm when sensor cable is open.
4. 1:1 redundant hot backup available; bumpless switchover when one card fails.
5. On-board self-diagnosis, LED status indicators for power, communication and channel fault.
6. Communicate with main control card via SBUS fieldbus, transmit converted digital process data to DCS controller.www.plcva.com

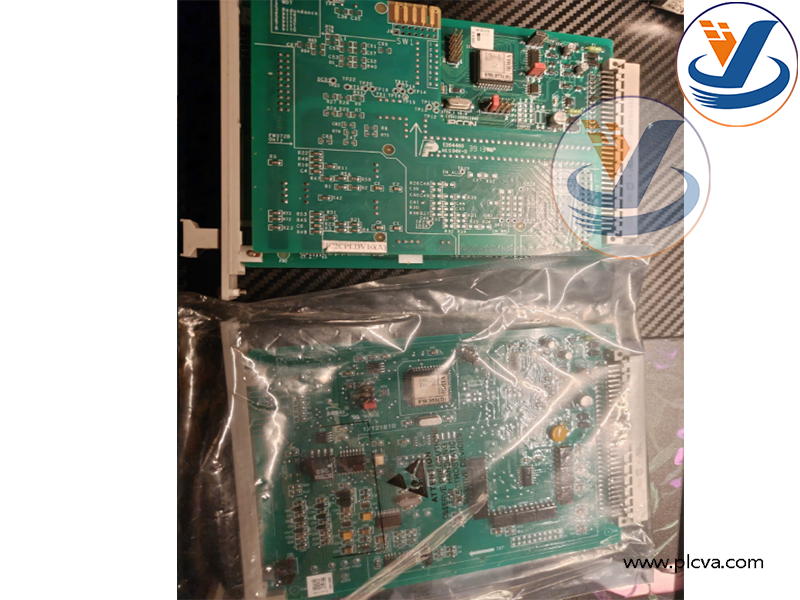

SUPCON FW351(B) & FW372(B) I/O Cards, Dedicated for ECS-100 System Physical photo

FW372(B) Analog Output Card

1. 8-channel point-to-point isolated analog output, outputs standard II/III type current signal (0~20mA /4~20mA).www.plcva.com
2. Intelligent card with independent CPU; monitors output current in real time.
3. Redundant configuration supported, bumpless switching during card failure.
4. Fault diagnosis for circuit and output channel, upload fault status to DCS.
5. Receives control commands from main control card, converts digital control value into analog 4–20mA signal to drive field actuators such as control valves.
6. Preset safe output value on communication loss to avoid uncontrolled equipment action.

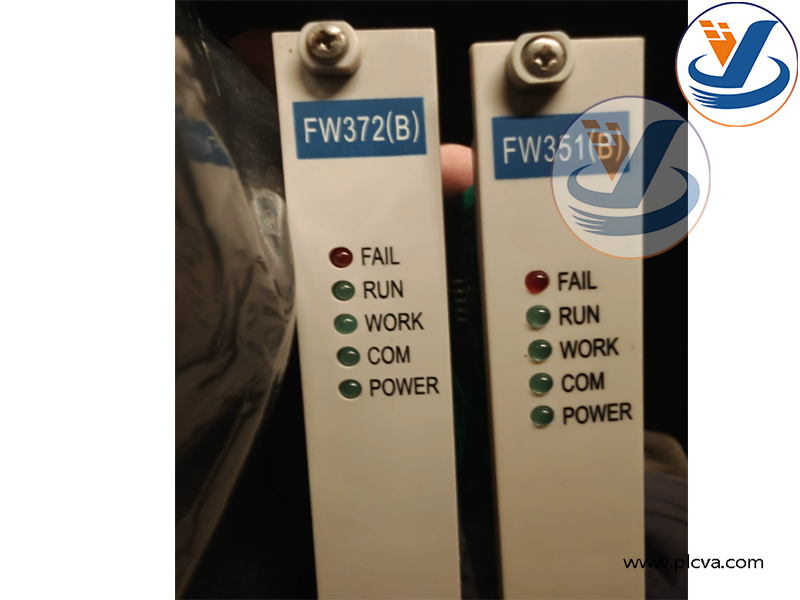

SUPCON FW351(B) & FW372(B) I/O Cards, Dedicated for ECS-100 System Physical photo

2. Applications

These I/O cards are core analog input & output modules for SUPCON ECS-100 distributed control system.

• Industries: Chemical, petrochemical, power plant, water treatment, pharmaceutical, metallurgy.
• FW351(B): Collect 4–20mA signals from pressure, flow, level, temperature transmitters, transfer field process data to DCS control station for monitoring and closed-loop calculation.
• FW372(B): Output 4–20mA control signal to pneumatic control valves, electric regulators to adjust flow, pressure, temperature and liquid level.
• Installation: Mounted inside DCS cabinet rack, matched with corresponding terminal boards.
• Purpose: Realize signal exchange between ECS-100 DCS and field instruments; support continuous process closed-loop control, alarm monitoring.
• Usage: New DCS project construction and spare replacement for existing ECS-100 systems.

SUPCON FW351(B) & FW372(B) I/O Cards, Dedicated for ECS-100 System Physical photo
