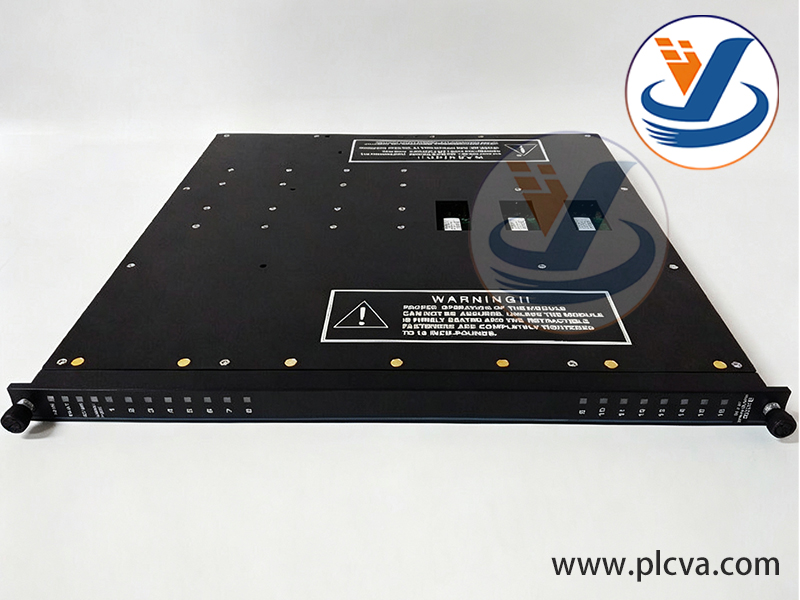

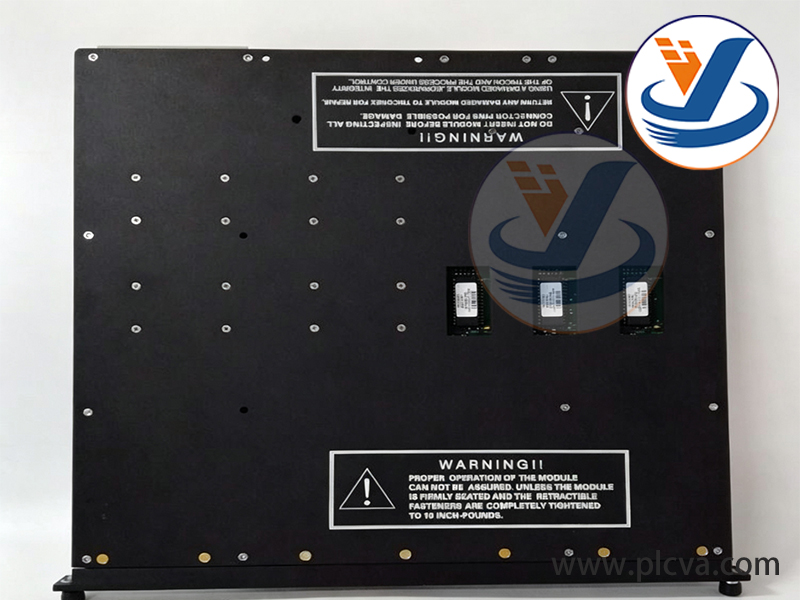

Functions of Triconex 3604E 24VDC Digital Output Module

1. Output drive signals for safety interlock to control field actuators As a 24VDC digital output card for Tricon TMR triple modular redundant SIS safety systems, it receives interlock operation commands from the MP3009X main processor and outputs 24V DC switching signals to drive field devices including solenoid valves, shutdown valves, audible & visual alarms, contactors and relays, to execute critical safety actions such as ESD emergency shutdown, BMS burner management and unit safety protection.
2. Triple Modular Redundant (TMR) fault-tolerant hardware architecture The module is equipped with three independent output drive circuits, which transmit identical control signals simultaneously and compare output status via real-time hardware detection. If one drive channel fails or the circuit suffers open/short circuits, the other two channels maintain normal output without spurious or fail-to-operate actions, meeting SIL3 high safety integrity level fault tolerance specifications.
3. Real-time online diagnosis of output loops It continuously monitors every output load loop, automatically detecting faults such as broken wires, short circuits, damaged solenoid coils, loose wiring and abnormal loads. It generates fault alarms and Sequence of Events (SOE) logs, which are uploaded to HMI operator screens and engineering workstations synchronously for rapid fault localization.
4. Electrical isolation and surge suppression protection Built-in opto-isolation circuits isolate ground loops and electromagnetic interference between the main control rack and field loads. It suppresses back EMF, voltage surges and harmonic interference from field sides, protecting the CPU host and module circuits, and is suitable for high-electromagnetic-interference industrial sites like oil, gas and chemical plants.
5. Fail-Safe de-energized safety logic Designed with industrial fail-safe principles, all outputs will automatically cut off power and switch to the safe state when the module malfunctions, severe mismatch occurs among three channels, or communication is lost, cutting off hazardous actuators to avoid dangerous process conditions and comply with process safety standards.
6. Support hot-swap maintenance on rack online The module can be replaced individually without system shutdown. Outputs of other channels remain unaffected during replacement, and the whole SIS safety interlock system keeps running without full plant shutdown for maintenance.
7. Compatible with standard 24VDC industrial loads It is specially designed for 24VDC DC field actuators, matching the common power supply specifications of industrial solenoid valves and relays. Each card contains multiple independent channels to control multiple groups of field safety equipment separately.
