TRICONEX

1.Term Explanation

1. TRICONEX: Brand name, a premium triple modular redundant SIS safety control brand under Invensys, specializing in Tricon Safety Instrumented Systems.
2. CIM: Abbreviation of Communication Interface Module, the same series communication card as CIM3211S2 mentioned previously.

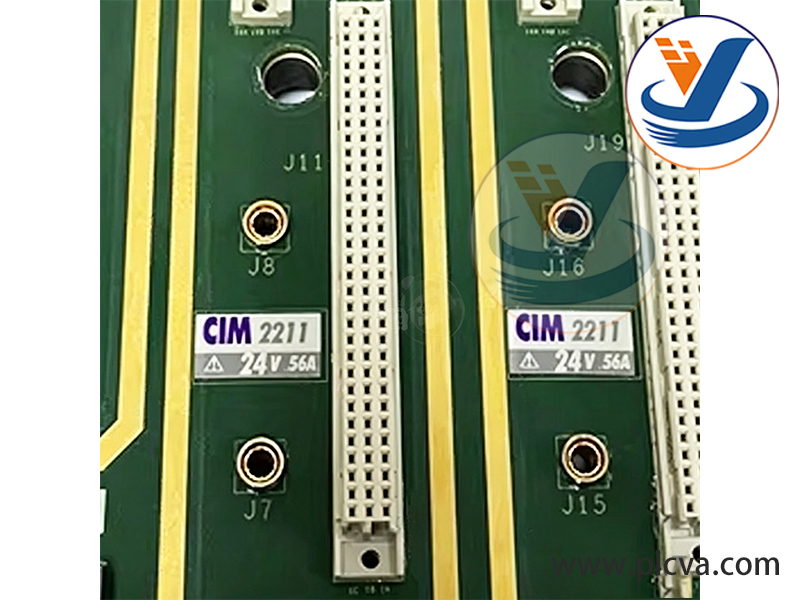

3. CIM2211: Matching base plate model, the dedicated mounting base for CIM series communication modules.
4. Communication Module Base Plate: Official component name, meaning mounting backplane/base for communication modules.
5. 7400322-100: Unique factory part number, used for procurement, spare parts replacement and equipment maintenance traceability.

Additional Note: CIM2211 itself has no communication functions; it is a hardware base for carrying CIM communication cards. The CIM communication module must be plugged onto this base plate to connect to the Tricon triple redundant internal bus.

2. Main Purposes

1. Physical support and rack mounting for CIM communication modules As a fixed base, it locks CIM series communication interface modules into standard slots of the Tricon main rack, providing mechanical fixation and anti-vibration support for vibration-prone industrial sites in chemical and oil & gas industries.
2. Signal transfer for system triple redundant bus Built-in backplane circuits connect the proprietary triple modular fault-tolerant internal bus of the Tricon rack. It transmits main logic signals from the controller rack to the inserted CIM communication module to realize electrical interconnection between the safety controller and communication card, conforming to the 2-out-of-3 (2oo3) redundant architecture.
3. Power distribution and electrical isolation It distributes DC operating power uniformly to CIM modules in rack slots. Integrated isolation circuits block surge and electromagnetic interference from external communication lines from feeding back into the Tricon safety controller, protecting core SIS safety units.
4. Expansion carrier for multi-channel wiring terminals The base plate is integrated with standardized terminal blocks, offering unified wiring points for RS232, RS485, industrial Ethernet and other external communication circuits, standardizing wiring layout and facilitating centralized cable access of DCS, HMI and third-party PLCs.
5. Carrier for fault diagnosis circuits Embedded hardware detection loops allow the Tricon system to detect faults in real time, including loose modules, poor contact, power loss and bus disconnection. Fault alarms and Sequence of Events (SOE) records will be uploaded to central control systems.
6. Standardized base plate for spare part replacement The unified part number 7400322-100 is compatible with all Tricon v9 / v10 controllers. The whole plate can be plugged and replaced directly during on-site troubleshooting to minimize equipment downtime.

3. Applicable Application Scenarios

Scenario 1: SIS Safety Interlock Systems for Oil Refining & Petrochemical Plants (Core Application)

Inside Tricon safety control cabinets of refineries, ethylene plants, hydrogenation and reforming units. It carries external CIM communication modules to realize bidirectional data exchange between SIS and petrochemical DCS, ensuring stable transmission of unit interlock signals.

Scenario 2: Oil & Gas Gathering Stations, LNG Liquefaction Plants & Long-distance Pipelines

Explosion-proof control cabinets for onshore gas gathering stations, offshore oil production platforms and pipeline compressor stations. Its anti-vibration and isolation design prevents communication contact failures caused by heavy vibration and electromagnetic interference, avoiding loss of safety interlock signals.

Scenario 3: Coal Chemical Plants, Ammonia Synthesis Units & Boiler FSSS

High-temperature and high-pressure hazardous process units. The Tricon safety system uses the CIM base plate to hold communication cards for connection with plant-wide monitoring platforms and boiler control systems, meeting SIL3 safety integrity hardware requirements.

Scenario 4: Fine Chemical & Pharmaceutical Explosion-Proof Production Lines

Reaction sections with flammable and explosive media. CIM communication base plates are uniformly installed inside safety instrument cabinets to steadily upload interlock alarms and process safety parameters to central operator stations.

Scenario 5: Safety Monitoring Systems for Thermal Power & Heating Boilers

Furnace Safety Supervision Systems (FSSS) of thermal power plants and waste incineration plants. It serves as the hardware base for external communication of safety controllers, isolating strong electromagnetic interference generated by high-power inverters and motors in power plants.

Scenario 6: Overseas Complete Sets of Chemical & Oil & Gas Equipment Export Projects

Matched with exported Tricon safety control systems. The universal global spare part number 7400322-100 simplifies maintenance and spare part procurement for overseas factories.

4. Supplementary Key Hardware Specifications

1. Safety Integrity Matching: Compliant with IEC 61508 SIL3 Tricon triple redundant systems;
2. Architecture Compatibility: Only compatible with Tricon v9 and v10 series main racks, exclusively for CIM2211 communication cards;
3. Anti-vibration Protection: Industrial anti-seismic structure, suitable for equipment rooms with compressors and pumps that generate continuous vibration;
4. Electrical Isolation: Galvanic isolation between backplane bus and external communication circuits, preventing accidental plant trip caused by short circuits on external cables;
5. Unique Ordering Code: 7400322-100 is the exclusive original factory part number; no universal substitute base plate is available, and spare parts must adopt components with the identical part number.
