Product Background

A6824R (9199‑00098‑13) is the rack‑interface & Modbus communication module for AMS6500 (CSI6500) Machinery Protection TSI System. It fits IMR6500‑series 19‑inch system rack with 4HP (4TE) slot width and supports redundant configuration.More products: www.plcva.com

This is legacy hardware for AMS6500 Classic system and has reached OEM End‑of‑Life(EOL). No new original manufacturing. Available supplies are surplus stock and refurbished used units. Widely deployed in thermal‑power and petrochemical steam‑turbine & compressor condition‑monitoring systems, compliant with API‑670 rotating‑machinery protection standardEmerson.

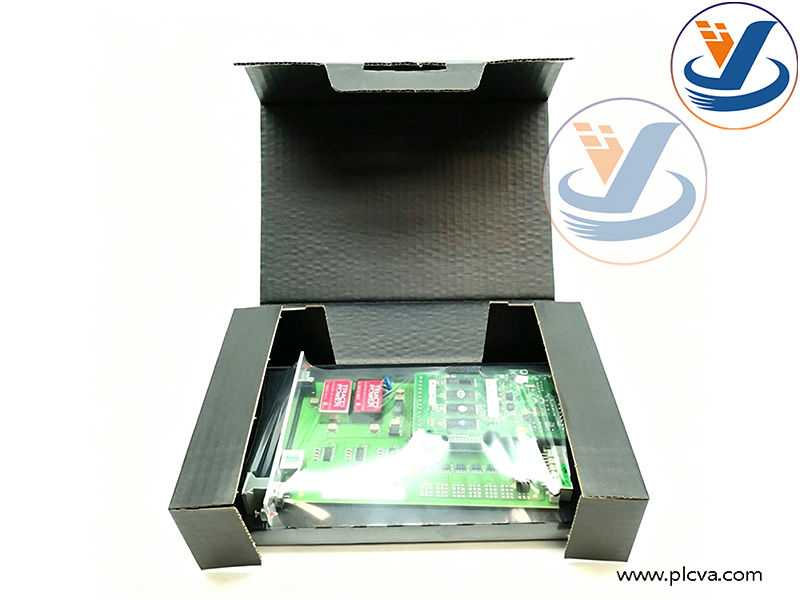

EMERSON A6824R 9199-00098-13 Modbus communication (4HP)

Main Functions

1. System‑wide data collection: Reads measurement values, alarm status and fault event data from all vibration, shaft‑displacement and speed monitoring cards inside the rack for data aggregationsis-dcs.co….

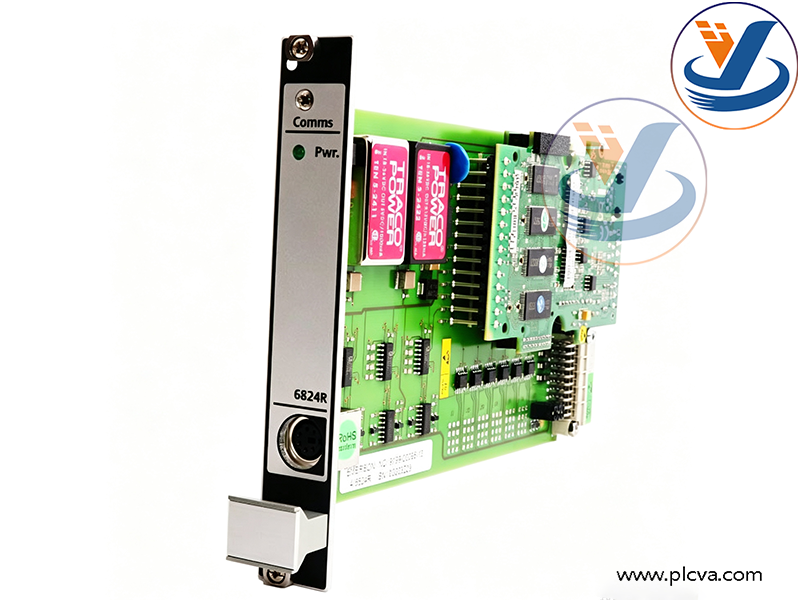

EMERSON A6824R 9199-00098-13 Modbus communication (4HP)

1. Dual‑protocol Modbus communication: Supports both Modbus‑TCP over RJ45 10Base‑T Ethernet and Modbus RTU over RS‑485 serial port to transmit machinery monitoring data to external host systems.
2. Rack back‑plane interface: Connects internal back‑plane bus of A6500‑SR system rack. 4HP(4TE) single‑slot form‑factor, hot‑swappable, optional master‑standby redundancy, password‑protected parameter configurationsis-dcs.co….More products: www.plcva.com
3. Hardware self‑diagnosis: Built‑in self‑test for hardware, power supply and module temperature. Front‑panel LED indicators for power and communication status; configurable Modbus slave address, baud rate and parity parameterssis-dcs.co….

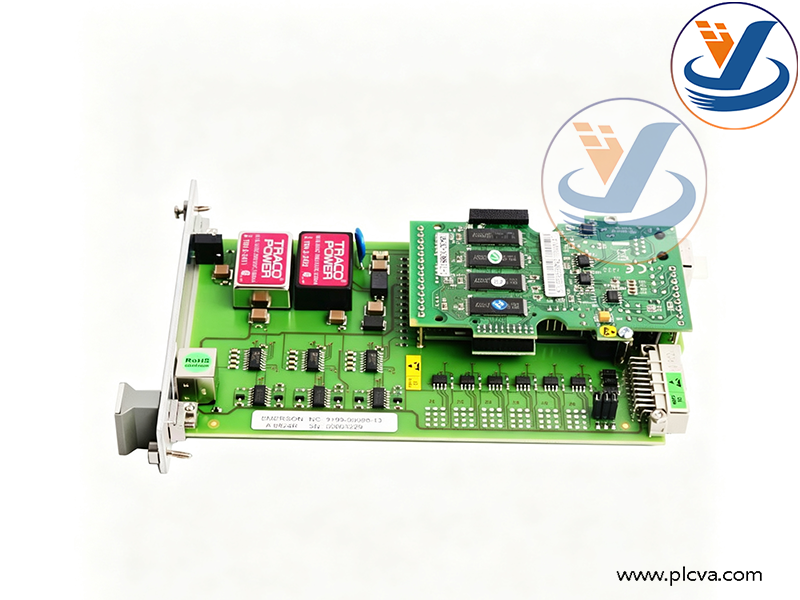

EMERSON A6824R 9199-00098-13 Modbus communication (4HP)

1. Local display driving: RS‑485 bus supports connection of multiple A6000 local display panels for on‑site machinery data viewing.

EMERSON A6824R 9199-00098-13 Modbus communication (4HP)

Main Applications

1. Acts as communication gateway for AMS6500‑Classic TSI machinery‑protection system, enabling data exchange between TSI rack and DCS, PLC or SCADA host systems.
2. Rotating‑machinery protection for steam turbines, gas turbines, centrifugal compressors and large fans; upload vibration, shaft displacement, rotating‑speed and interlock‑alarm information.
3. Spare‑part replacement and retrofitting for legacy units in petrochemical, thermal‑power and oil‑gas plants.
4. Drives A6000 local display terminals for on‑site data reading beside equipment cabinets.
