Schneider Electric Triconex 3700A 32-Channel TMR Analog Input Module for Tricon Safety Instrumented System

Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：plcvarious@foxmail.com

+086 18205988494

Introduction

Main Functions

32-channel analog signal acquisition with TMR voting It collects 0–5VDC differential analog signals from field transmitters. Three independent signal processing legs perform simultaneous sampling and 2-out-of-3 hardware voting. Single channel fault will not lead to wrong reading or unwanted trip, meeting SIL3 safety integrity level (IEC61508).
High precision analog-to-digital conversion 12-bit resolution, accuracy less than 0.15% full scale range. Converts analog field measurements into digital data and transmits to Tricon main processor via TriBus backplane bus.
Comprehensive built-in diagnostics Continuously monitor circuit health, channel deviation, wiring faults and signal overrange. It generates fault alarms and records failure events for maintenance personnel.
Hot-swap capability Supports online replacement while the SIS system keeps running. No need to shut down the whole safety system during module maintenance, minimizing plant downtime.
Backplane communication via TriBus Interacts with Tricon main processor and other I/O modules on the backplane, uploading voted analog measurement data and receiving system configuration commands.
Rugged industrial hardware design Works under wide temperature range for harsh factory and offshore environments, with strong common-mode noise rejection to resist industrial interference.

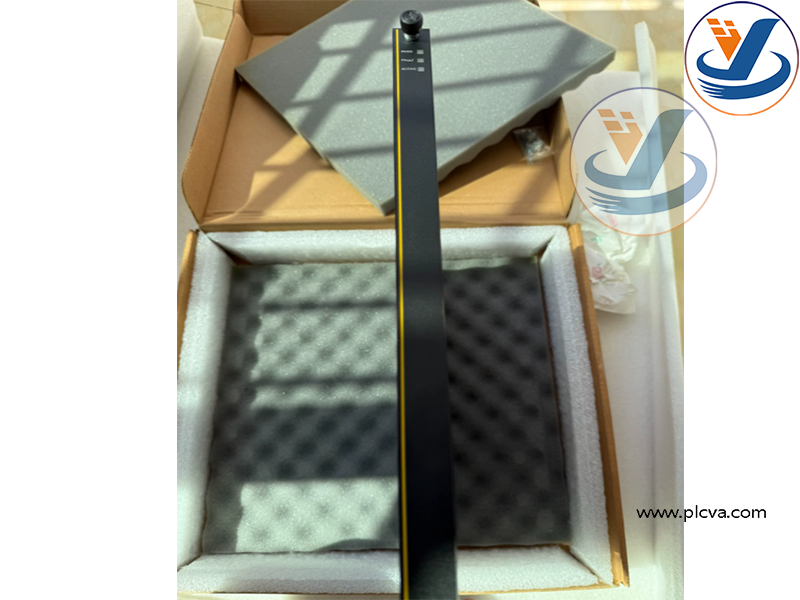

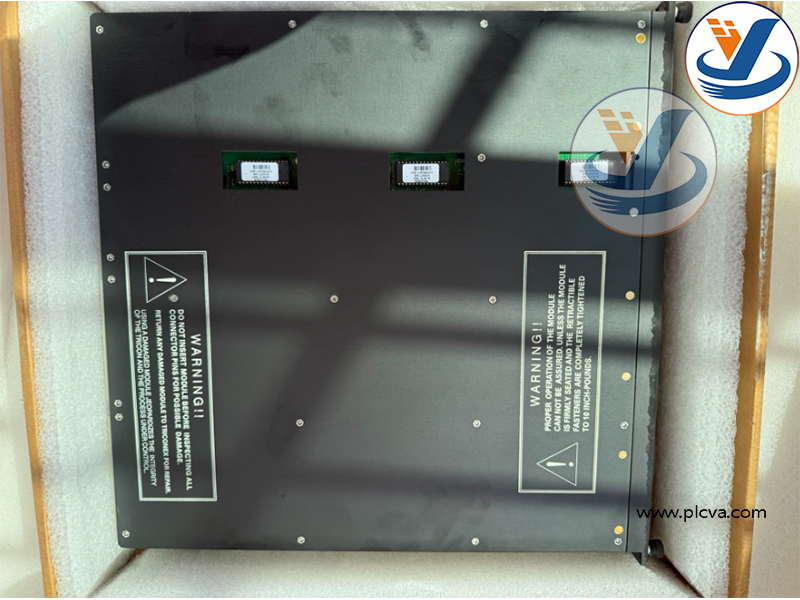

Triconex 3700A

Triconex 3700A

Applications / Purpose

This Triconex 3700A analog input module is a core I/O component of Tricon SIS safety system, used to monitor critical process variables in high-risk industrial plants.

Oil & gas / Offshore platforms: Measure pressure, temperature, flow and liquid level for ESD emergency shutdown system.
Petrochemical & chemical plants: Monitor reactor, distillation tower and storage tank process parameters.
Power industry: Boiler and turbine safety monitoring, overspeed and process protection.
F&G Fire and Gas systems: Receive analog signals from combustible gas detectors and flame transmitters.
LNG terminal, pipeline station, pharmaceutical hazardous process safety protection. It provides reliable analog field data for safety interlock logic; when measured values exceed safe threshold, the SIS will trigger shutdown actions to protect people, equipment and environment.
